20years Factory ADSS 24core 48core 96core 144core All Dielectric Self Supporting Optical Fiber Cable Mini ADSS Cable

Basic Info.

Allowed Lateral Pressure	>1000(N/100mm)
Allowed Tensile Strength	1000N<10000N
Core	Multicore
Certification	RoHS, CE, ISO9001, VDE, CCC
Brand	Surelink
Sheath Material	HDPE
Central Strength Member	FRP
Strength Material	Kevlar
Fiber Count	24-288
The Certification	CE/RoHS/ISO9001/Anatel
OEM	Available
Fiber Mode	Single Mode and Multi Mode
Transport Package	Wooden Drum
Trademark	SURELINK
Origin	China
Production Capacity	30000km/Month

Packaging & Delivery

Package Size 50.00cm * 50.00cm * 20.00cm Package Gross Weight 2.000kg

Product Description

SURELINK 20years adss manufacturer 48core 96core 144core 288core all dielectric self supporting ADSS communication cable adss

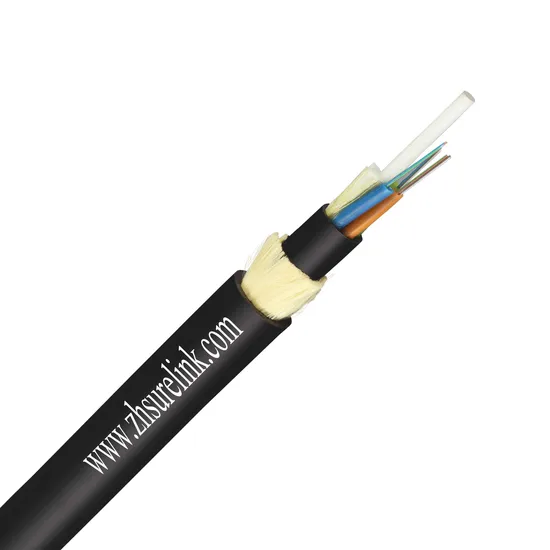

Cable Structure

Technical Parameters

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus
plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around
a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable
core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath.
After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed
with PE or AT (anti-tracking) outer sheath.

1. Loose tube design
Stable performance and compatibility with all common fiber types

2. Self-supporting
Instead of Aramid yarn or glass yarn,there is no support or messenger wire required.

3.Track-resistant &jacket available
For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the
resistance to corrosion(AT) outer sheath.

4.Sutable for Aerial self-support installation

Model Number	ADSS
Type	Coaxial
Number of Conductors	>=10
Application	Aerial fiber cable
Function	Delivery signal light
Certification	ADSS pass ISO9001,UL,TIL,CE
Sheath material	PE or AT for ass fiber optic cable
Fiber type	OS1/OS2,OM1,OM2,OM3,OM4
Length per roll	2km/3km/4km ADSS fiber
Marketing	printing
Fiber count	2 core to 288 core
Strength member	FRP

Optical Fiber Performance

Fiber Type	G.652D,125.0+-1.0μm
Mode Field Diameter	9.2+-0.2μm at 1310 nm
Cladding Diameter	125+-1μm
Cladding Non-Circularity	<=1%
Coating Diameter	245+-10μm
Attenuation Coefficient	<=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm
Chromatic Dispersion	<=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm
Zero Disperson Wavelength	1300-1322nm
PMD Coefficient	<=0.2ps/√km

Related Hot Models

Manufacturer Introduction

Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables and telecom accessories. We have more than 20 years experience in this line.Our factory has over twenty production lines and 300 employees.

Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients and the quality guarantee in every order.

Our products have been widely installed in Telecom companies and many distributors around the world. We export to more than 70 countries and our annual revenue is more than hundreds of million USD.

We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.

OEM and ODM order highly welcome !

Workshop and Company Show

Package and Delivery

Payment and Shipping

Payment
We usually use T/T
T/T deposit before production and balance when shipment.
Payment terms: Western Union, Escrow, Paypal, T/T ,L/C
Shipping
If the quantity of the order is not very big, we usually send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS.
For big order,we will ship the goods by air or by sea.
