Quality Assurance LC APC Singlemode Pre

Quality Assurance LC APC Singlemode Pre

Overview Product Parameters Technical parameter Product Description Product profile The fast connector are factory pre-p;
Overview
Basic Info.
Fiber Mode Sm mm
Channel Simplex/Duplex
Return Loss < -40dB
Operation and Storage Temperature -40~ + 80°c
Insertion Loss 0.36dB
Mode Singlemode/Multimode/Om3/Om4/APC
Use FTTH
Transport Package Wooden-Drum
Specification FC-FC APC
Trademark Dierite
Origin Changzhou Jiangsu China(Mainland)
Production Capacity 200000PCS/Month
Product Description

Product Parameters

Technical parameter

Connector TypeSC/LC
FerruleUPC or APC
Fiber ModeSM MM
ApplicationFTTH
Insertion Loss0.36DB
Return Loss< -40dB
Operation and storage temperature-40~ + 80°C

Product Description

Product profile
The fast connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.
Characterstic

•Easy and fast operation, Quick assembly passive construction.•Widely used for optical distribution frame(ODF), FTTH, CATV Optical fiber instrument etc.•Professional design, adopting A-level tricyclic ceramic ferrule.•Good repeatability high return loss, stable and reliable performance, high installation quality high success rate and high reliability.•Be used for ODFZ FTTH, CATV optical switch, fiber modem etc.
Application•Telecommunication Networks.•Fiber Optic Sensors•Local Area Network.•Test & measurement.•FTTH and FTTX.•DWDM applications

Detailed Photos

Installation Procedure

Application

Certifications

Company Profile

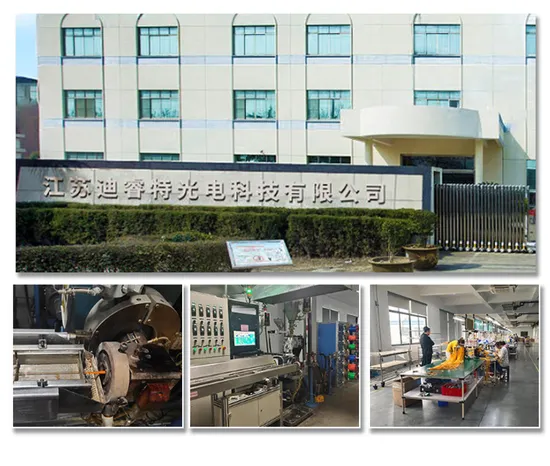

Jiangsu Dierite Optoelectronics Technology Co., Ltd. is a professional optical fiber cable manufacturer with own R&D center; marketing center and production base, located in Changzhou Jiangsu China, close to Shanghai and Ningbo port. Our company is committed to provide first-class solutions and OEM services for operaton system integrators and Integrated wiring provider Products cover indoor and outdoor fiber optic cable, fiber optic patch cord, PLC splitter; adaptecattenuatocetc.Dierite was established in 2010, now our workshop area is about 5000 square meters, and has more than 150 workers. We are also a national high-tech enterprises with ISO 9001,CE/RoHS and many Utility Model Patent Certificates. Our factory controls the quality constantly and strictly in order to give the best products to the users.Products have been widely used in telecommunications, broadband, and network industry and are exported to Asia, North America, South America, Europe and other places. As an original manufacturer; we will accelerate the development of the global 5G era with the most stringent quality and the most competitive price.
